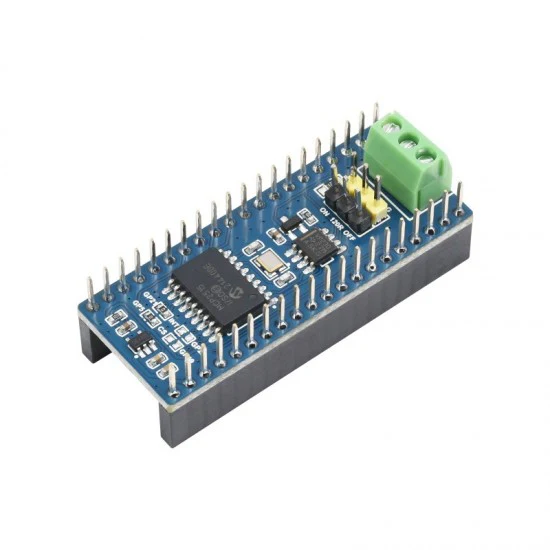

CAN bus Module (B) for Raspberry Pi Pico, enabling long range communication through SPI
This is a CAN Bus Module (B) For Pico Enabling Reliable Long Range Communication For Raspberry Pi Pico With Other Devices and Comes with online development resources and manual.
Features
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- Features CAN function, adopts SPI interface CAN controller MCP2515 with transceiver SIT65HVD230DR
- Comes with online development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Resources
Specifications
| OPERATING VOLTAGE | 3.3V~5V |
|---|---|
| CAN CONTROLLER | MCP2515 |
| CAN TRANSCEIVER | SIT65HVD230DR |
| COMMUNICATION BUS | SPI |
| BAUDRATE | 5K~1000Kbps |
Onboard Peripherals
-
RT9013-33GB
500mA low dropout, low noise, ultra-fast LDO -
MCP2515
Second generation standalone CAN controller -
SIT65HVD230DR
3.3V CAN transceiver
-
Terminal resistor selection
ON: connected to 120R matching resistor
OFF: disconnected from 120R matching resistor - CAN bus terminal
