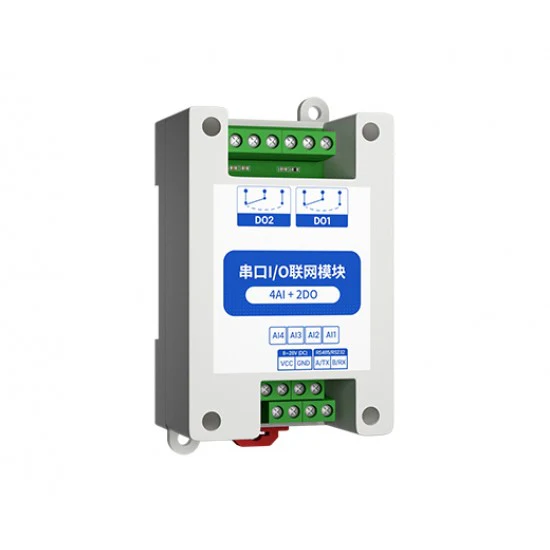

Ebyte MA01-XACX0420 4AI+2DO 2 Switch Output, RS485 ModBus Serial Port I/O Network Module
Ebyte MA01-XACX0420 4AI+2DO 2 Switch Output, RS485 ModBus Serial Port I/O Network Module
The MA01-XACX0420 is a support for the acquisition of four sensor analog inputs (AI), converted to serial port(RS485) data transfer to configuration software or PLC. The serial I/O networking module (also known as "Remote IO") for remote acquisition control function is realized by controlling the 2 relay switch output (DO) by sending instructions from the serial port.
Features
- Support for modbus RTU protocols
- Support for all types of configuration software / PLC / touch screen
- RS485 Acquisition Control IO
- DC 8to28V power supply
- 4 analog input AI(0 to 20mA/4 to 20mA)
- 2 switch output DO(relay)
- Switch output(DO)supports level mode, pulse mode
- Input acquisition port isolation protection
- Communication Baud Rate 1200to115200(default 9600),supports custom settings
- Support for 1to247 substations,5-bit dial switch can be set 1to31 address code, greater than 31 can beset bysoftware.
- Supports installation of guide and positioning hole
