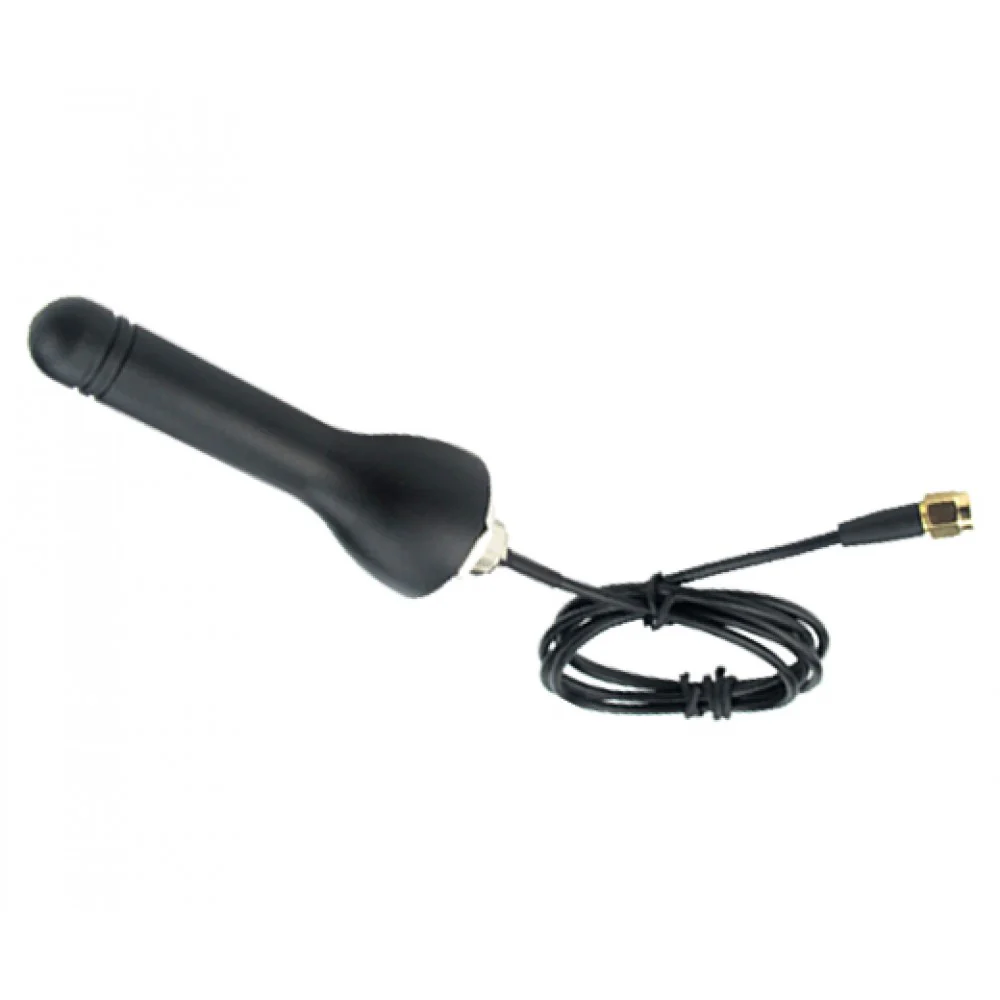

Ebyte TX433-JG-150 433MHz 3.5dBi 50 Ohm SMA-J Interface Cabinet Antenna

TX433-JG-150 is a 433M portable cabinet antenna. Size of the antenna is 80mm×30mm. With a SMA-J interface (SMA inner screw thread and inner needle), it can be applied to such devices with frequency of 433M as control box, vehicle, property security, hotel, construction site, outdoor driving, radio and so on.

Specifications

• Bandwidth : 423-443MHz
• Gain : 3.5dBi
• SWR : ≤1.5
• Polarization : Vertical
• Radiation Direction : Omnidirectional
• Input Impedance : 50Ω
• Power Capacity : 20W
• Interface : SMA-J(SMA inner screw thread and inner needle)
• Working Temperature : -30℃～+75℃
• Storage Temperature : -30℃～+75℃
